| Brand Name: | Purple Horn |
| Model Number: | TE9018B01 |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Delivery Time: | 3-5Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, |

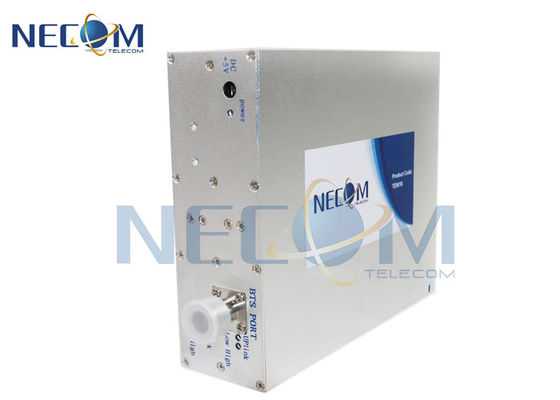

GSMDCS2G Dual Band Cell Phone Signal Repeater/900MHz1800MHz Mobile Phone Signal Repeater
Brief Description:
GSM DCS dual band Signal BoosterTE9018B is intended to strengthen
the signal of 900MHz/1800MHz mobile phone in the buildings. Ideal for use in areas where the 900MHz/1800MHzsignal is weak to cause Call dropout or Cant connection.The device improves the voice calls and data VOICE GPRS and EDGE (depends of the signal operator).
Features:
Applicable place:
It can be applied in Building rooms there have weak signal of mobile.
Specification:
| Frequency Range |
Uplink:GSM:890-915/DCS:1710-1785MHz; Downlink:GSM:935-960/DCS:1805-1880MHz; |
| gain(dB) | GSM Uplink: Gp≥65;GSM Downlink:Gp≥70;DCS Uplink: Gp≥65; DCS Downlink: Gp≥70; |
| Gain adjustable range | MGC≥30dB; |
| Pass band ripple | GSM≤4dB; DCS≤15dB; |
| Guard band Output power(dBm) rejection | GSM(BW-60dB)≤42MHz; (BW-70dB)≤45MHz; |
| DCS(BW-60dB)≤104MHz; (BW-70dB)≤107 MHz; | |
| I/O Impedance | 50Ω/N Connector; |
| I/O return loss | ≤-10dB; |
| Noise Figure | ≤-8dB; |
| Inter-modulation attenuation(Po=13dBm) | ≤-40dBm; |
| Transmission Delay | ≤0.5μs; |
| Ambient Temperature | -10℃-50℃; |
| Power Supply | AC110-220V±10%/45-55Hz; |
| Size | 148mm×106mm×33mm; |
| Reliability | To the GB6993-86 standard; |
| Electromagnetic compatibility | To the ETS300 694-4 standard; |
| Function | a) Power supply LED denote |
| b) Export power LED denote |
Package contents:
1pcs AC90-264V,DC5/5A power supply adapter;
1pcs AC power cord (EU standard/US standard/UK standard/ SA standard/China standard etc);
1pcs Installation kit;
1pcs User manual;
