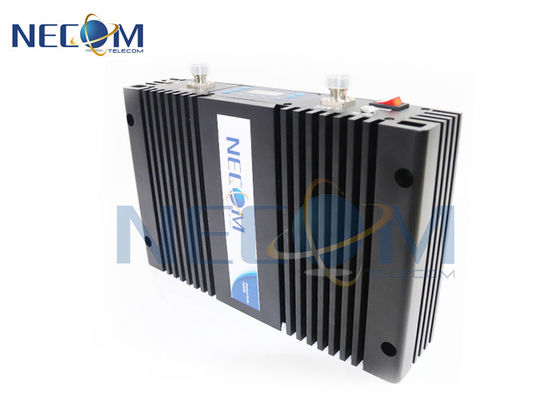

4G 2600MHz Cell Phone Signal Booster 148mm*106mm*33mm Size Double End Design

4G 2600MHz Cell Phone Signal Booster 148mm106mm33mm Size Double End Design

Brand Name:	Purple Horn
Model Number:	TE2635B02
MOQ:	1pcs
Price:	Negotiable
Delivery Time:	3-5Working Days After Payment
Payment Terms:	L/C, T/T, Western Union,

Detail Information

Product Description

Detail Information

Place of Origin:

China

Power Supply:

AC110-220V±10%/45-55Hz;

Size:

148mm×106mm×33mm;

Reliability:

To The GB6993-86 Standard;

Electromagnetic:

To The ETS300 694-4 Standard;

Function:

B) Export Power LED Denote;

Packaging Details:

Neutral Packing Carton Box

Supply Ability:

5000pcs Per Month

Highlight:

mobile network booster device

cellular signal booster

Product Description

35Dbm High Power 4G2600MHz Mobile Phone Signal Booster/4G Cellphone Signal Booster

Brief Description:

2600MHz Pico-Repeater is intended to strengthen the signal of 2600MHz mobile phone in the buildings. Ideal for use in areas where the 2600MHz signal is weak to cause Call dropout or Cant connection. The device improves the voice calls and data VOICE GPRS and EDGE (depends of the signal operator).

Features:

High system gains.
Full duplex and double-end design, external power supply, and convenient installation.
ALC technology with auto-steady function adopted.
Provide power indication and uplink and downlink indications.
With the amplified linear power, the inter-modulation an spuriousness are suppressed effectively.
The reliability conforms to GB6993-86 standards.
The electromagnetic compatibility conforms to ETS300 609-4 standards.

Applicable place:

It can be applied in Building rooms there have weak signal of mobile.

Specification:

Frequency Range	Uplink:2500-2570MHz; Downlink:2620-2690MHz;
Gain	(Uplink)Gp≥80dB; (Downlink):Gp≥85dB;
Output Power	≥35dBm;
Pass band ripple	≤4dB
Guard band rejection	(BW-60dB) ≤42MHz;
Guard band rejection	(BW-70dB)≤45MHz;
I/O impedance	50Ω/N Connector;
I/O return loss	≤-10dB;
Noise figure	≤-8dB;
Intermodulation attenuation (Po=13dBm)	≤-40dBm
Transmission	≤0.5μs;
Ambient	-10℃-50℃;
Power Supply	AC110-220V±10%/45-55Hz;
Size	148mm×106mm×33mm;
Reliability	To the GB6993-86 standard;
Electromagnetic	To the ETS300 694-4 standard;
Function	a) Power supply LED denote;
Function	b) Export power LED denote;
