Product Details:
Payment & Shipping Terms:
|
| Power Supply: | AC110-220V±10%/45-55Hz; | Size: | 148mm×106mm×33mm; |
|---|---|---|---|
| Reliability: | To The GB6993-86 Standard; | Electromagnetic: | To The ETS300 694-4 Standard; |
| Function: | B) Export Power LED Denote; | ||
| High Light: | cellular signal booster,mobile signal amplifier |
||

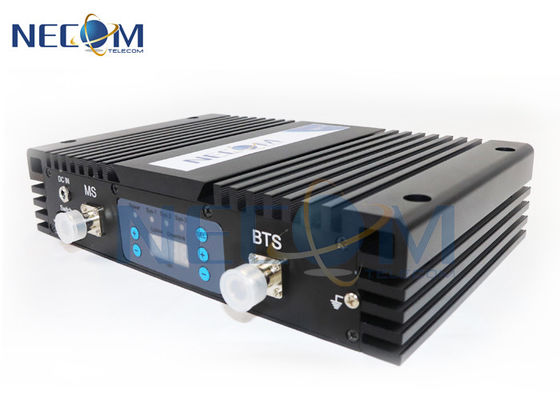

4G2600MHz Smartphone Signal Repeater/4G2600MHz Phone Signal Booster
Brief Description:
2600MHz Pico-Repeater is intended to strengthen the signal of 2600MHz mobile phone in the buildings. Ideal for use in areas where the 2600MHz signal is weak to cause Call dropout or Cant connection. The device improves the voice calls and data VOICE GPRS and EDGE (depends of the signal operator).
Features:
Applicable place:
It can be applied in Building rooms there have weak signal of mobile.
Specification:
| Frequency Range | Uplink:2500-2570MHz; Downlink:2620-2690MHz; |
| Gain | (Uplink)Gp≥75dB; (Downlink)Gp≥80dB; |
| Output Power | ≥33dBm |
| Pass band ripple | ≤4dB |
| Guard band rejection | (BW-60dB) ≤42MHz |
|
(BW-70dB)≤45MHz;
|
|
| I/O impedance | 50Ω/N Connector; |
| I/O return loss | ≤-10dB |
| Noise figure | ≤-8dB |
| Intermodulation attenuation (Po=13dBm) | ≤-40dBm |
| Transmission | ≤0.5μs |
| Ambient | -10℃-50℃ |
| Power Supply | AC110-220V±10%/45-55Hz; |
| Size | 148mm×106mm×33mm; |
| Reliability | To the GB6993-86 standard; |
| Electromagnetic | To the ETS300 694-4 standard; |
|
Function
|
a) Power supply LED denote; |
| b) Export power LED denote; |
Order Information:
Pico-Repeater 3G2600MHz TE-2633B: Outputpower 33dBm /Gain 85dB Cover area 3000-3500 square meters;
Package contents:
1 pcs booster
1 set power supply
1 pcs user manual
1 set installation screws
