| CH1: 20-200 MHz: Output Power: | 47 DBm | CH2: 200-500 MHz: Output Power: | 47 DBm |
|---|---|---|---|
| CH3: 136-174 MHz: Output Power: | 47 DBm | CH4: 420-460 MHz: Output Power: | 47 DBm |
| CH5: 851-894 MHz: Output Power: | 47 DBm | CH6: 851-894 MHz: Output Power: | 47 DBm |
| CH8: 1930-1990 MHz: Output Power: | 47dBm | CH9: 1930-1990 MHz: | 47dBm |
| CH10: 2110-2170 MHz: | 47 DBm | CH11: 2400-2483 MHz: | 47 DBm |
| CH12: 2600-2700 MHz: | 47 DBm | CH13: 460-470 MHz: | 47 DBm |
| Power Supply: | DC 24V | ||
| High Light: | mobile phone signal blocker,cell phone signal jammer |
||

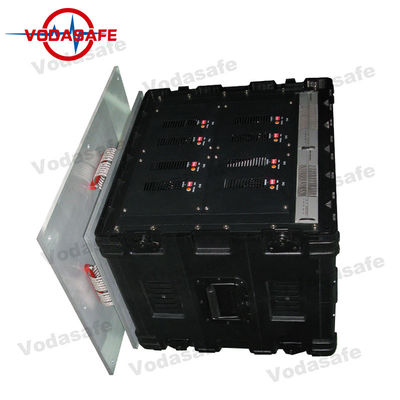

13 Channels Vehicle Jammer
Brief Description:
13-channel vehicle signal shielding device, stable outer box design can maintain stable working performance during driving, reasonable structure design, convenient operation of various function keys, 13-channel signal output includes almost all common frequency segments in daily life. Can also be customized according to your needs. With a radius of 300 meters, it safely covers all dangerous small signals. Good heat dissipation ensures excellent operation in all weathers.
Technical Features:
1.UHF broadband interference technology.
2.High effective power (channel power) and large jamming radius.
3. Effective segmentation, only interferes with downlink, does not cause interference to the base station.
4. Imported chips, slow start circuit design can avoid the fire sparking phenomenon caused by mechanical switch, high integration and stable operation.
5. Perfect self-protection function, when the device is overheated, output over-power, standing wave and other fault alarms, the jammer will automatically close the failed module to avoid damage to the jammer；
Specification:
| Frequencies | |
| CH1: 20-200 MHz: Output Power | 47 dBm |
| CH2: 200-500 MHz: Output Power | 47 dBm |
| CH3: 136-174 MHz: Output Power | 47 dBm |
| CH4: 420-460 MHz: Output Power | 47 dBm |
| CH5: 851-894 MHz: Output Power | 47 dBm |
| CH6: 851-894 MHz: Output Power | 47 dBm |
| CH8: 1930-1990 MHz: Output Power | 47dBm |
| CH9: 1930-1990 MHz | 47dBm |
| CH10: 2110-2170 MHz | 47 dBm |
| CH11: 2400-2483 MHz | 47 dBm |
| CH12: 2600-2700 MHz | 47 dBm |
| CH13: 460-470 MHz | 47 dBm |
| Power Supply | DC 24V |
| Shielding Radius | 100-300 meters |
| Power Consumption | 2400W |
| Weight | 86Kg |
| Dimension(L×W×G) | 625×500×700mm |
| Humidity | 30%-95% |
| Operating Temperature | -10 to +55Celsius |
Packing List:
| Item | Quantity(SET) | Remark |
| Jammer unit | 1 | |
| Control panel | 1 | |
| Antenna | 13pcs (10pcs inside/3pcs external ) | |
| Rf cable | 1 | |
| External battery | 1 |
