Payment & Shipping Terms:
|Total Outputpower:||64W||Cover Radius:||10-70m(under Signal Level ≤-85dBm)|
|Jamming Type:||Sweep Jamming||Antenna Type:||3dBi External Omni-directional|
|Power Supply:||AC Adapter (50 To 60Hz/100 To 240V AC-DC24V)||Electric Filed (SAR):||Compatible With ICNIRP Standards (Human Safe)|
|Operating Temp:||-20 To +50℃||Storage Temp:||-40 To +60℃|
|Humidity:||5%-80%||Dimension(LXWXH):||355 X 238x 60mm Not Include Antennas|
mobile phone signal blocker,
cell phone signal jammer
70m coverage range multi bands mobile phone signal jammer has 12 antennas customized service, each signal's output power is up to 6-8W, could block signals within large area, each band could be controlled seperately, the jamming range could adjust by the adjustable tuner.

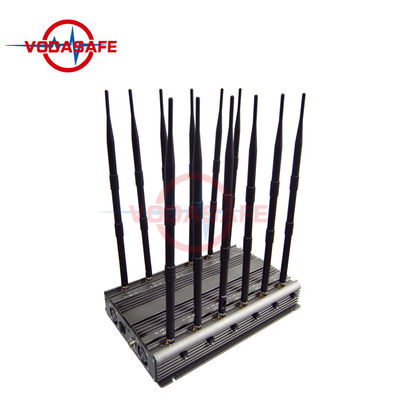

High-power Stationary 12Bands Jammer/Blocker Vodasafe X12plus
Vodasafe 12 bands mobile phone signal jammer X12Plus is our updated multi-purpose high power jammer now. Jamming all types of wireless devices such as mobile phones, Wi-Fi/Bluetooth, spy camera, gps tracking device, Lojack, walkie-talkie, Remote control etc. Creating a range of 70 meters radius "forbidden" zone for all wireless devices, in the coverage area, they will not be able to send messages, answer calls and they will lose the ability to access the Internet. It effectively prevent "leakage" of important information and also jamming car bomb prevent your safety.
* Adjustable working range you can avoid blocking adjacent areas
* Easy of use and maintenance
* Good cooling system with cooling fan inside
* 24/7hours working, Could continue to work
* Stable capability
* Build-in AC110-240V to 24V adapter, Safe and easily use.
Jammer can be used to block the cell phone signal in the churches, museums, movie theatres or during the important conference in a meeting room to avoid the leakage of secure information, in classrooms during the exams, courts, hospitals, banks, recording studios or other crowded places where the usage of mobile phone is prohibited, factory, bank, train, car, bus etc.
|Total Output Power||64W|
10-70m(under Signal level ≤-85dBm)@according to the signal density mobile network
|Jamming type||Sweep Jamming|
|Antenna Type||3dBi external omni-directional|
|Power Supply||AC adapter (50 to 60Hz/100 to 240V AC-DC24V)|
|Electric Filed (SAR)||Compatible with ICNIRP Standards (Human safe)|
|Operating Temp||-20 to +50℃|
|Storage Temp||-40 to +60℃|
|Dimension(LXWXH)||355 x 238x 60mm not include antennas|
|Inner box dimension||470x420x115mm|
1.Before linking all the antenna, power supply shall not be switched on at first.Non taking off antenna when the mainframe is in the working condition.
2.The jammer shall be installed in the position with good ventilation.Andlarge-scale things shall be avoided to ensure to the shielding effect.
3.When use the jammer outdoors, preventing water shall be taken into consideration.
4.Antenna shall be used vertical to the ground.
5.If you used in car, please make sure the car output adapter is DC12V,The Minimum output power of storage battery is 150Watt.
Order Information :
Model:X12 jamming for CDMA/GSM/3G/4GLTE Cellphone/Wi-Fi 2.4G/Bluetooth/Walkie-Talkie/GPSL1L2/Lojack/RC315MHz
America Type frequency forUnited States, Canada, Mexico,S. America.
1.GSM850MHz: 850-894MHz; 8W; (GSM/CDMA)
2. GSM1900MHz:1920-1990MHz;6W (2GGSM/CDMA/PCS1900MHz)
4. 3G2100MHz:2100-2170MHz;6W (3GUMTS/WCDMA/TD-SCDMA/CDMA)
7. VHF Radio:135-175MHz; 5W
8. UHF Radio: 400-470MHz; 5W
9. GPS L1: 1575MHz; 4W
10. GPS L2: 1227MHz;4W
Total Output Power:64W
Europe Type frequency for used Europe, Asia, Australia, Middle East, Africa.
3. 4GLTE700MHz:790-821MHz; 8W
4. 3G2100MHz:2100-2170MHz 6W (3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth2.4G:2400-2500MHz; 5W
7. VHF Radio:135-175MHz;5W
8. UHF Radio:400-470MHz;5W
9. GPS L1:1575MHz; 4W
10. GPS L2:1227MHz; 4W
11. Lojack:173MHz; 5W
Total Output Power:64W
We could supply customized service by your detail requirements about frequencies setting.
2.GPS/GLONASS/GALILEO:L3 L4 L5;
4.Car remote Control:868MHz,920-965MHz;
5. SAT Satellite Phones:1520-1670MHz
Optional function: Remote control on/off (3-5m)
1pcs Signal Jammer
1pcs AC Charger
1pcs Car Charger
Contact Person: Abby
