Total Output Power: | 47W | Cover Radius: | 10-60m(under Signal Level ≤-85dBm)@according To The Signal Density Mobile Network |
---|---|---|---|
Jamming Type: | Sweep Jamming | Antenna Type: | 3dBi External Omni-directional |
Power Supply: | AC Adapter (50 To 60Hz/100 To 240V AC-DC12V) With Car Charger | Electric Filed (SAR): | Compatible With ICNIRP Standards (Human Safe) |
High Light: | cell phone signal jammer,mobile phone scrambler |

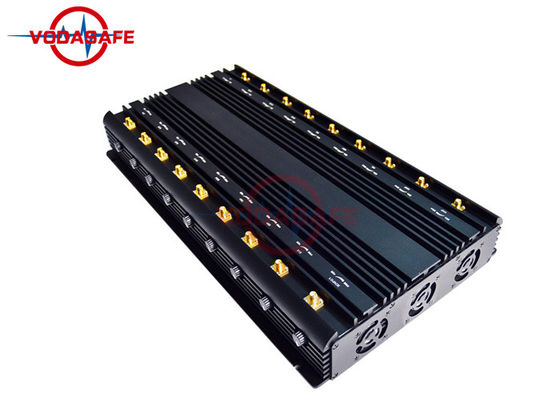

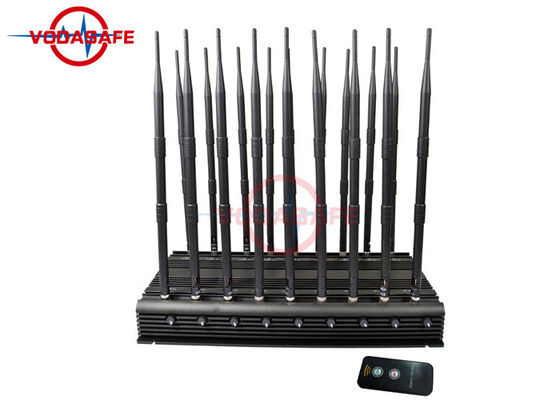

18 Frequency Mobile Phone Signal Jammer/47W 18 Antenna Cell Phone Signal Blocker
Description:
This X18 mobile phone signal shielding device integrates 18 frequency segment modules, which is the most integrated frequency segment in the fixed shielding device so far. It is a multi-band and output power and long-term use and many other contradictions. A balance point, each channel's output power is 2.5W, the total output power is up to 47W, and the shielding distance is up to 60 meters. This shielded heat-dissipating function is also a heat-dissipating case with a built-in fan. It supports long-term uninterrupted work. Each channel can be controlled separately, and the size of the shield can be controlled by adjusting the output power.
Features:
Applicable Place:
It can be applied in a meeting room, conference room, museum, gallery, theater, concert hall, church, temple, restaurant,classroom, training center, factory, bank,train, car bus etc.
Specification:
Total Output power | 47W |
Cover Radius | 10-60m(under Signal level ≤-85dBm)@according to the signal density mobile network |
Jamming Type | Sweep Jamming |
Antenna Type | 3dBi external omni-directional |
Power Supply | AC adapter (50 to 60Hz/100 to 240V AC-DC12V) with car Charger |
Electric Filed (SAR) | Compatible with ICNIRP Standards (Human safe) |
Operating Temp | -20 to +50℃ |
Storage Temp | -40 to +60℃ |
Humidity | 5%-80% |
Cooling System | High efficiency aluminum alloy radiator, Build-in 5 cooling fan |
Working Time | Not-stop Working |
Dimension(LXWXH) | 460 x 238x 60mm not include antennas |
Inner box dimension | 550x440x150mm |
Weight | 8kg |
VodasafeX18A: Jamming for all Mobile Phone 4G/3G/2G /Wi-Fi2.4G/ GPSL1-L5/Walkie-TalkieUHF/VHF/Lojack/RC433MHz/315MHz
1.CDMA850MHz: 850-894MHz; 35dbm/3W;
2.GSM900MHz:925-960MHz; 35dbm/3W;
3.DCS1800MHz:1805-1880MHz; 33dbm/3W;
4.PCS1900MHz:1900-1990MHz; 33dbm/3W;
5.3G2100MHz:2110-2170MHz; 33dbm/3W;
6.Wi-Fi 2.4G:2400-2500MHz; 30dbm/3W;
7.4G LTE:700-805 or 790-826MHz; 35dbm/3W;
8.4G1 LTE:2500-2690MHz; 30dbm/3W;
9.4G2 1700:1710-1780MHz; 33dbm/3W;
10.4GHz 2300:2300-2400MHz;30dbm/3W;
11.433MHz (car remote control):433MHz 35dbm/3W;
12.315MHz (car remote control):315MHz 35dbm/3W;
13.VHF:135-175MHz; 35dbm/3W
14.UHF:400-470MHz; 35dbm/3W
15.LOJACK:167-175MHz; 35dbm/3W
16.GPSL1:1570-1580MHz; 33dbm/3W
17.GPSL2+L5:1170-1280MHz;33dbm/2W
18.GPSL3+L4:1370-1390MHz;33dbm/2W
Total Output Power: 47W
