Sweep Jamming Cell Phone Signal Blocker Jammer AC Adapter Power Supply AC110-240V

70m Jamming Range Mobile Phone Signal Jammer Satisfy Commonly Needs in Daily Life

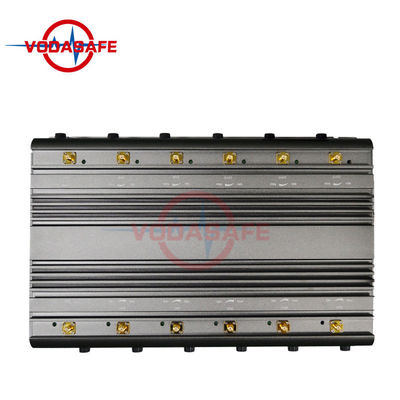

X12Plus is updated version of x12, compare to the old model, it has higher output power, each bands output power is 5-8W, 70m jamming range could satisfy commonly needs in daily life, the weight is only 6kg, its portable design is suitable for using in everywhere. 12 antennas frequency could be customized by your detail requirement.

Features:

*Adjustable working range you can avoid blocking adjacent areas

*Easy of use and maintenance

* Good cooling system with cooling fan inside

* 24/7hours working, Could continue to work

*Stable capability

* Build-in AC110-240V to 24V adapter, Safe and easily use.

Applicable place:

Jammer can be used to block the cell phone signal in the churches, museums, movie theatres or during the important conference in a meeting room to avoid the leakage of secure information, in classrooms during the exams, courts, hospitals, banks, recording studios or other crowded places where the usage of mobile phone is prohibited, factory, bank, train, car, bus etc.

Specifications:

Total Outputpower:71W

Cover Radius: 10-70m(under Signal level ≤-85dBm)@according to the signal density mobile network

Jamming type: Sweep Jamming

Antenna Type: 3dBi external omni-directional

Power Supply: AC adapter (50 to 60Hz/100 to 240V AC-DC24V)

Electric Filed (SAR): Compatible with ICNIRP Standards (Human safe)

Operating Temp:-20 to +50℃

Storage Temp:-40 to +60℃

Humidity: 5%-80%

Dimension(LXWXH): 355 x 238x 60mm not include antennas

Inner box dimension:470x420x115mm

Weight:6kg

Notices:

1.Before linking all the antenna, power supply shall not be switched on at first.Non taking off antenna when the mainframe is in the working condition.

2.The jammer shall be installed in the position with good ventilation.And large-scale things shall be avoided to ensure to the shielding effect.

3.When use the jammer outdoors, preventing water shall be taken into consideration.

4.Antenna shall be used vertical to the ground.

5.If you used in car, please make sure the car output adapter is DC12V,The Minimum output power of storage battery is 150Watt.

Order Information :

Model:X12 Plusjamming for CDMA/GSM/3G/4GLTE Cellphone/Wi-Fi 2.4G/Bluetooth/Walkie-Talkie/GPSL1L2/Lojack/RC315MHz

America Type frequency forUnited States, Canada, Mexico,S. America.
1.GSM850MHz: 850-894MHz; 8W; (GSM/CDMA)
2. GSM1900MHz:1920-1990MHz; 6W (2GGSM/CDMA/PCS1900MHz)
3. 4GLTE700MHz:700-800MHz;8W
4. 3G2100MHz:2100-2170MHz;6W (3GUMTS/WCDMA/TD-SCDMA/CDMA)

5. Wi-Fi/Bluetooth2.4G:2400-2500MHz;5W

6. 4GWiMAX/4GLTE2600MHz:2500-2700MHz;5W

7. VHF Radio:135-175MHz; 5W

8. UHF Radio: 400-470MHz; 5W

9. GPS L1: 1575MHz; 4W

10. GPS L2: 1227MHz; 4W

11. Lojack:173MHz; 5W

12. RC315MHz:315MHz;5W

Total Output Power:64W
