|Operating Temp:||-20 To +50℃||Storage Temp:||-40 To +60℃|
|Humidity:||5%-80%||Dimension(LXWXH):||395 X 238x 60mm Not Include Antennas|
|Inner Box Dimension:||470x420x115mm||Weight:||7kg|
wifi blocker jammer,
wifi signal blocker device

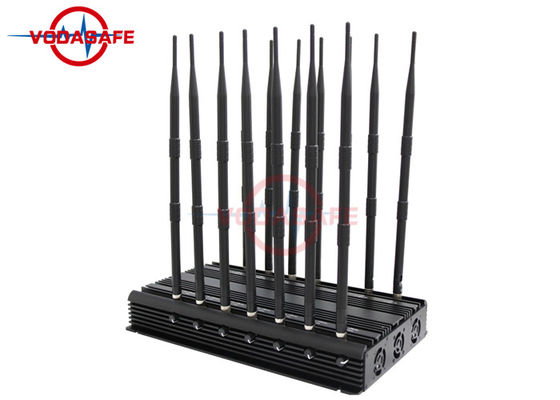

Wireless Camera Signal Jammer/14 Frequency Cell Phone Signal Blocker For 2G3G4GWi-FiGps
This 14-way signal shield has 14 frequency segments, the total output power is 40W, and the shielding distance can be as high as 60 meters. This frequency segment setting is also divided into European and American models, and the American model. The frequency range includes GSM850MHz1900MHz3G2100MHz4GLTE700MHz4G2600MHz2.4GHzUHFVHFGPSL1L2Lojack433MHz315MHz868MHz. The frequency range of the European model is set to GSM900MHz1800MHz3G2100MHz4GLTE700MHz4G2600MHz2.4GHzUHFVHFGPSL1L2Lojack433MHz315MHz868MHz. The difference between the two conventional frequency segments is that the 2G frequency segment is different. This product has a built-in cooling fan that also supports long-term uninterrupted work. Powerful and stable, we can also equip your car with your requirements.
Jammer can be used to block the cell phone signal in the churches, museums, movie theatres or during the important conference in a meeting room to avoid the leakage of secure information, in classrooms during the exams, courts, hospitals, banks, recording studios or other crowded places where the usage of mobile phone is prohibited, factory, bank, train, car, bus etc.
|Total Output Power||40W|
|Cover Radius||10-60m(under Signal level ≤-85dBm)@according to the signal density mobile network|
|Jamming type||Sweep Jamming|
|Antenna Type||3dBi external omni-directional|
|Power Supply||AC adapter (50 to 60Hz/100 to 240V AC-DC12V) with car charger|
|Electric Filed (SAR)||Compatible with ICNIRP Standards (Human safe)|
|Operating Temp||-20 to +50℃|
|Storage Temp||-40 to +60℃|
|Dimension(LXWXH)||395 x 238x 60mm not include antennas|
|Inner box dimension||470x420x115mm|
1. Before linking all the antennas, power supply shall not be switched on at first. Non taking off antenna when the mainframe is in the working condition.
2. The jammer shall be installed in the position with good ventilation. And large-scale things shall be avoided to ensure to the shielding effect.
3. When use the jammer outdoors, preventing water shall be taken into consideration.
4. Antenna shall be used Vertical to the ground.
5. If you used in car, please make sure the car output adapter is DC12V, this device only can be working on DC12V,Not DC24V.
Order information :
X14A: CDMA/GSM/3G/4GLTE Cellphone/Wi-Fi 2.4G/Bluetooth/Walkie-Talkie/GPSL1L2/Lojack/RC433MHz/315MHz/868MHz
America Type frequency for United States, Canada, Mexico ,S. America.
1. GSM850MHz:850-894MHz; 3W
2. GSM1900MHz:1920-1990MHz;3W (2GGSM/CDMA/PCS1900MHz)
3. 4GLTE700MHz:700-800MHz; 3W
4. 3G2100MHz:2100-2170MHz;3W (3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth2.4G:2400-2500MHz; 2W
7. VHF Radio:135-175MHz; 2W
8. UHF Radio: 400-470MHz; 2W
9. GPS L1:1575MHz; 2W
10. GPS L2:1227MHz; 2W
11. Lojack:173MHz; 3W
14. RC868:868MHz; 3W
Total Output Power: 36W
Optional Function :Remote control on/off (3-5m)

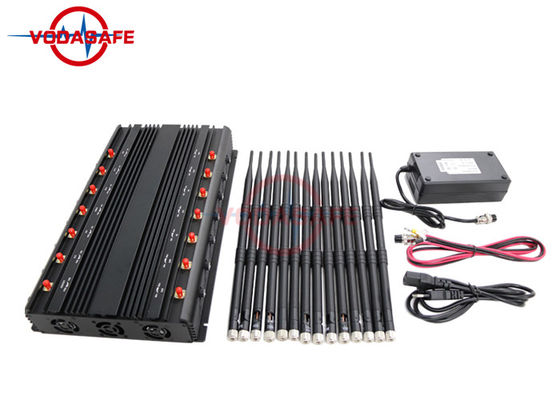

1pcs jammer unit
14pcs omini antenna
1pcs power supply
1pcs car charger
Contact Person: Jerry
Total Output power: 90W
RF Output power Each Band: 15W
Cover Radius: Up to 100 meters radius (Signal≤-85dBm),the coverage range depends on the strength signal in given area. The shielding radius of VHF/UHF signal should be lesser than cell phone signal.
Power Supply: AC adapter (50 to 60Hz/100 to 240V AC –DC27V)
