Product Details:
Payment & Shipping Terms:
|
| Total Output Power: | 150W | Cover Radius: | 50-150m(under Signal Level ≤-85dBm) |
|---|---|---|---|
| Jamming Type: | Sweep Jamming | Antenna Type: | 5dBi External Omni-directional |
| Power Supply: | AC Adapter (50 To 60Hz/100 To 240V AC –DC27V) | Electric Filed (SAR): | Compatible With ICNIRP Standards (Human Safe) |
| Operating Temp: | -20 To +50℃ | Storage Temp:: | -40 To +60℃ |
| Humidity: | 5%-80% | Dimension(LXWXH): | 600 X 350x 95mm Not Include Antennas |
| High Light: | mobile phone signal blocker,cell phone signal jammer |
||

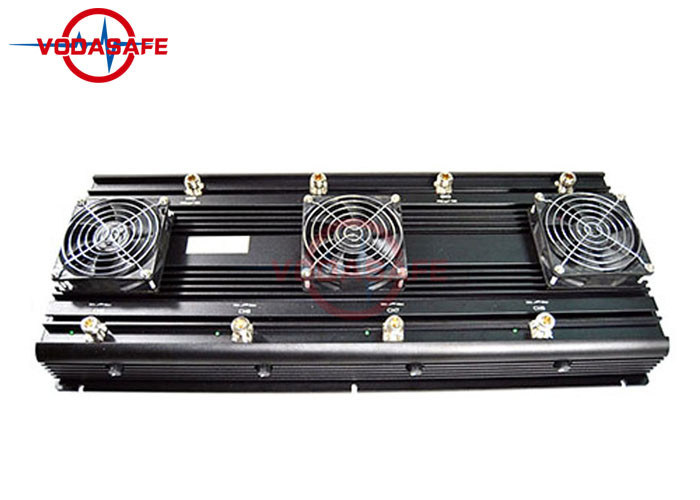

150M coverage range mobile phone signal disabler with eight antennas signal blocking,with 5dBi external omni-directional antennas for each band, it satisfy electric filed standards ICNIRP, it is human safe model design, total output power is up to 150W, 15kg weight is very convinent for using everywhere, it could work for kinds of drones controlled by kinds of signals.
Features:
Applicable place:
Jammer can be used to block the cell phone signal in the churches, museums, movie theatres or during the important conference in a meeting room to avoid the leakage of secure information, in classrooms during the exams, courts, hospitals, banks, recording studios or other crowded places where the usage of mobile phone is prohibited, factory, bank, train, car, busetc.
Specification:
| Total Outputpower | 150W |
| Cover Radius | 50-150m(under Signal level ≤-85dBm)@according to the signal density mobile network |
| Jamming type | Sweep Jamming |
| Antenna Type | 5dBi external omni-directional |
| Power Supply | AC adapter (50 to 60Hz/100 to 240V AC –DC27V) |
| Electric Filed (SAR) | Compatible with ICNIRP Standards (Human safe) |
| Operating Temp | -20 to +50℃ |
| Storage Temp | -40 to +60℃ |
| Humidity | 5%-80% |
| Dimension(LXWXH) | 600 x 350x 95mm not include antennas |
| Weight | 15kg |
Notices:
1.Before linking all the antennas, power supply shall not be switched on at first. Non taking off antenna when the mainframe is in the working condition.
2.The jammer shall be installed in the position with good ventilation. And large-scale things shall be avoided to ensure to the shielding effect.
3.When use the jammer outdoors, preventing water shall be taken into consideration.
4.Antenna shall be used Vertical to the ground.
5.If you used in car, please make sure the car output adapter is DC27V, this device only can be working on DC24-27V, the minimum output power of storage battery is 350Watt.
Order information:
Model:X8ProA CDMA/GSM/3G2100MHz/4GLTE Cellphone/Wi-Fi2.4G/Bluetooth/Walkie-Talkie
America Type frequency for United States, Canada, Mexico ,S. America.
1. GSM850MHz:850-894MHz;25W; (CDMA/GSM)
2. GSM1900MHz:1920-1990MHz;20W;(2GGSM/CDMA/PCS1900MHz)
3. 4GLTE700MHz:700-800MHz;25W;
4. 3G2100MHz:2100-2170MHz;20W;(3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth 2.4G:2400-2500MHz; 20W
6.4GWiMAX/4GLTE2600MHz:2500-2700MHz;20W
7. VHF Radio:135-175MHz;10W
8. UHF Radio:400-470MHz;10W
Total Output Power:150W
Model:X8ProA CDMA/GSM/3G2100MHz/4GLTE Cellphone/Wi-Fi2.4G/Bluetooth/Walkie-Talkie
Europe Type frequency for used Europe, Asia, Australia, Middle East, Africa.
1. GSM900MHz:925-960MHz; 25W;
2.GSM1800MHz:1805-1880MHz; 20W;
3. 4GLTE700MHz:790-821MHz; 25W;
4. 3G2100MHz:2100-2170MHz;20W; (3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth 2.4G:2400-2500MHz;20W
6. 4GWiMAX/4GLTE2600MHz:2620-2690MHz;20W
7. VHF Radio:135-175MHz;10W;
8. UHF Radio:400-470MHz;10W;
Total Output Power:150W
X8ProB: CDMA/GSM/3G2100MHz/4GLTE Cellphone/Wi-Fi2.4G/Bluetooth/GPS/Glonass/GalileoL1L2
America Type frequency for United States, Canada, Mexico,S. America.
1. GSM850MHz:850-894MHz; 25W (GSM/CDMA)
2. GSM1900MHz:1920-1990MHz;20W (2GGSM/CDMA/PCS1900MHz)
3.4GLTE700MHz:700-800MHz;25W
4. 3G2100MHz:2100-2170MHz;20W (3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth2.4G:2400-2500MHz;20W
6. 4G WiMAX/4GLTE2600MHz:2500-2700MHz;20W
7. GPS/Glonass/GalileoL1:1570-1620MHz; 10W
8. GPS/Glonass/GalileoL2:1200-2300MHz; 10W
Total Output Power:150W
X8ProB: CDMA/GSM/3G2100MHz/4GLTE Cellphone/Wi-Fi2.4G/Bluetooth/GPS/Glonass/GalileoL1L2
Europe Type frequency for Europe, Asia, Australia, Middle East, Africa.
1. GSM900MHz:925-960MHz;25W
2.GSM1800MHz:1805-1880MHz;20W;(2GGSM/CDMA/DCS1800MHz)
3. 4GLTE700MHz:790-821MHz;25W;
4. 3G2100MHz:2100-2170MHz;20W;(3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. Wi-Fi/Bluetooth 2.4G:2400-2500MHz;20W;
6. 4GWiMAX/4GLTE2600MHz:2620-2690MHz;20W;
7. GPS/Glonass/GalileoL1:1570-1620MHz; 10W
8. GPS/Glonass/GalileoL2:1200-2300MHz; 10W
Total Output Power:150W
Optional Frequency:
1.Lojack:173.03MHz;
2.CDMA450MHz:430-450/460-470MHz
3.GPS/GLONASS/GALILEO:L1 2 L3 L4 L5,
4.Wireless Camera:1.2G
5.Car remote control:433MHz,315MHz,868MHz , 920-965MHz
6.Walkie-Talkie:VHF,UHF
7. SAT Satellite Phones:1520-1670MHz
8. Wi-Fi 11a/n 5.1-5.5GHz: 5100-5500MHz;10W
9. Wi-Fi 11a/n 5.5-5.9GHz:5500-5900MHz;10W
We could supply customized service by your detail requirements about frequencies setting.
Package contents:
1pcs Signal Jammer
1pcs AC 110 or 220V power supplier
8pcs omni directional Antenna
